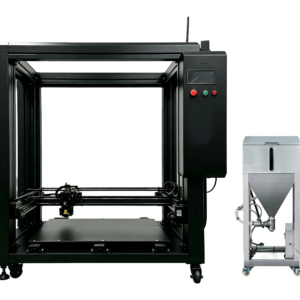

XT-1000 FGF Industrial 3D Printer

This device is a fully enclosed, heavy-duty industrial grade 3D printer designed for stability and high-performance output. The specific configurations are as follows:

1. Machine Structure & Hardware

• Build & Mechanics: Features a fully enclosed sheet metal structure with a surface spray treatment. It is equipped with an independent electrical box, a high-speed motherboard, 4 sets of linear guide modules on the Z-axis, and heavy-duty double slider guide rails on the XY-axis.

• Machine Weight: Net weight is 200KG, and gross weight is 250KG.

• Extruder Configuration: Equipped with a single extruder (heatable up to 300°C) supporting larger nozzle diameters of 2.0, 3.0, 4.0, and 5.0mm. It is driven by a Leadshine closed-loop stepper motor (max 300W).

• Print Platform: Utilizes a “silicone rubber heated bed + tempered glass platform.”

2. Core Printing Performance

• Precision & Thickness: Printing precision ranges from 0.08mm to 0.5mm, with a selectable layer thickness of 0.3mm to 1.0mm. Positioning accuracy is 0.011mm for the XY-axis and an ultra-fine 0.0025mm for the Z-axis.

• Speed & Load Capacity: Supports high-speed printing at 50-500mm/s. The robust worktable has a maximum load capacity of 60KG (110 lbs).

3. Consumables & Smart Interaction

• Supported Consumables: Compatible with a wide range of moldable plastics including PLA, ABS+PC, PETG, TPU, and elastic PEET. Materials are housed in an independent material box.

• Smart Features: Features a 7-inch Chinese/English smart color touch screen with a user-friendly interface. It supports auto-shutdown after printing is complete to ensure perfect model curing and energy saving.

• Connectivity & System: Supports USB online printing and SD card offline printing; fully compatible with Linux, Windows, and OSX; recognizes STL, OBJ, GCODE, and X3G files.

4. Power Specifications & Accessories

• Power Requirements: Operates on a 24V internal power supply. The primary input voltage is 220V (50/60Hz, 5.4-2.2A) with a high power rating of 2500W. It supports a wide voltage range of AC100 to 240V±10% (1.0A).

• Included Accessories: Comes standard with 1 set of user accessories, an instruction manual, a warranty card, an SD card, and printing/slicing software including ReplicatorG, Cura, and OrcaSlicer.
